Products

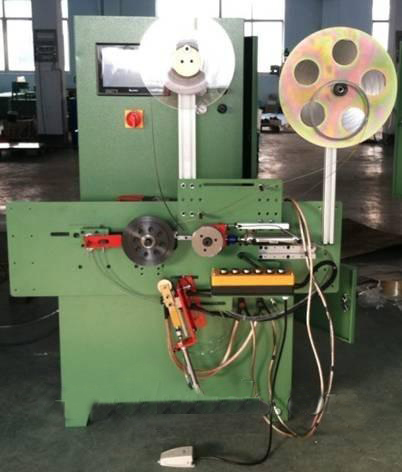

Automatic Spiral Wound Gasket Winding Machine

our newest design, it has the best automatic function all over China. The automatic functions of this machine include PLC size controlling, with SS strip forming roller, Automatic spot welding.


Send Inquiry


Description

Automatic spiral wound gasket Winding machine Details

STYLE

KXT E500C-V

KXT E500C-VF

Automatic winding machine for SWG (newest design)

Working mode

Both Manual and Automatic mode

SS strip

Pre-formed SS strip in pancake

both pre-formed SS strip in pancake or 20-25kgs spool of flat strip

Producing ability

Standard package including models for 1"-10" 150# SWG with or without inner ring, other size model on request with extra charge

SWG thickness

4.5mm (also suitable for 3.2 and 6.4mm after changing roller parts, V shape winding or W shape winding for option)

Automatic function

PLC size controlling,
Automatic spot welding

PLC size controlling, Automatic spot welding,with SS strip forming roller,

Maximum gasket OD

500mm

Minimum gasket ID

25mm

Gasket OD tolerance

±0.2mm

Spindle speed

0--300rpm

Total power

8kw

Spindle motor power

1.5kw

Welder power

6kw

Power supply voltage

380V or 220V for option, 3 phases

AIR COMPRESSER

0.6-0.8 MPA

PLC

xinjie

Production rate

20--30s  /pc      (for ANSI 6" 150LB)

Machine measurement

1400*1050*1650mm

Machine net weight

400kg
