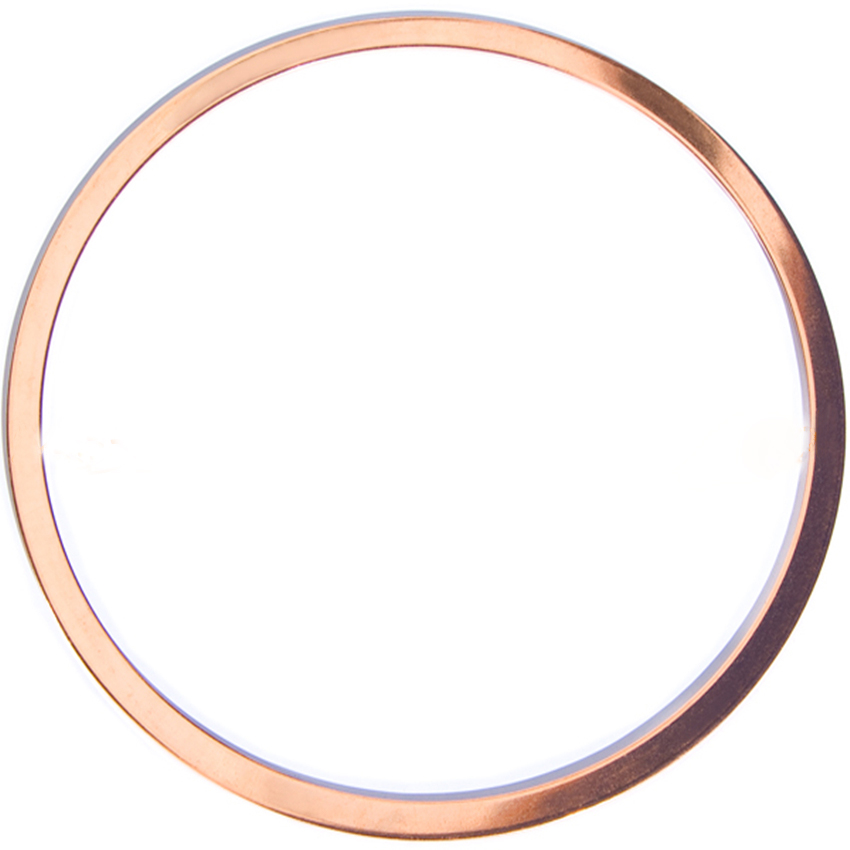

OFHC Copper Gaskets for CF Flanges
Kaxite Sealing's OFHC Copper Gaskets for CF Flanges offer superior sealing in high-vacuum systems, thanks to their oxygen-free high-conductivity copper material that ensures reliability and durability. Perfect for engineers and laboratories, these gaskets solve leakage issues, providing peace of mind and enhanced performance. Their premium quality sets them apart from standard options. Upgrade your setup with Kaxite Sealing today, backed by our quality assurance.
Send Inquiry
Product Description
To make a leak tight UHV seal between two conflat flanges, a gasket is required. OFHC (oxygen free high conductivity) copper is normally used as this sealing material as it is very clean, can easily be formed to shape, has a wide temperature range, and has a low outgassing rate.
| Type | A | B | Oxygen-free Copper | |
| Order no. | weight /kg | |||
| 16 | 21.3 | 16.2 | 7355 | 0.01 |
| 25 | 35 | 25.6 | 7356 | 0.01 |
| 35 | 48.1 | 36.8 | 7357 | 0.02 |
| 50 | 61.6 | 52 | 7358 | 0.02 |
| 63 | 82.4 | 63.6 | 7359 | 0.05 |
| 80 | 99 | 82 | 7360 | 0.07 |
| 100 | 120.5 | 102 | 7361 | 0.07 |
| 150 | 171.3 | 152.5 | 7362 | 0.1 |
| 200 | 222.1 | 203 | 7363 | 0.14 |
| 250 | 273.1 | 254 | 7364 | 0.2 |
Standard size: CF16, CF25, CF35,CF50, CF63, CF80, CF100, CF150, CF200, CF250.
We also manufacture the non-standard copper gasket seals upon your requirement.
