Understanding Ring Joint Gaskets: The Ultimate Sealing Solution for High-Pressure Applications

In the demanding world of industrial sealing, where extreme pressures and temperatures are the norm, selecting the correct gasket is not just a matter of efficiency—it's a critical safety imperative. For over two decades, professionals have relied on a specific, highly engineered solution to seal flanged connections in the most severe service conditions: the Ring Joint Gasket (RJG). As a cornerstone of reliable performance in industries like oil and gas, petrochemical, and power generation, the RJG represents the pinnacle of metal-to-metal sealing technology. At Kaxite Sealing, we have dedicated our expertise to mastering the design, metallurgy, and manufacturing of these vital components, ensuring they meet the uncompromising standards required for safe and continuous operation.

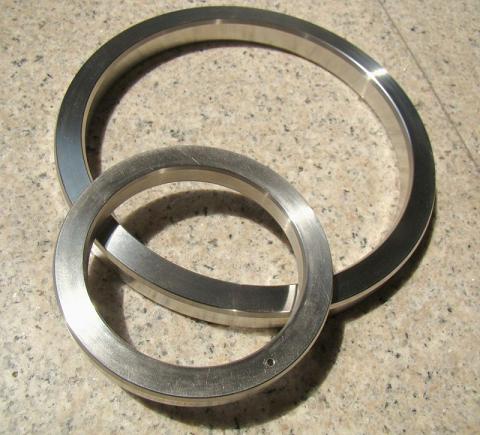

The principle behind a Ring Joint Gasket is elegant in its simplicity and robust in its execution. It consists of a solid metal ring with an oval or octagonal cross-section that is precision-machined to fit into a corresponding groove, or "recess," machined into the mating flanges. When the flanges are bolted together, the ring is compressed plastically into the groove, creating a highly effective, self-energizing seal. This seal is exceptionally resistant to high internal pressure, thermal cycling, and corrosive media, making it the undisputed choice for critical applications. Unlike softer gasket materials, an RJG does not creep or relax over time, providing a permanent, leak-tight barrier that can withstand the test of time and extreme operating envelopes.

Key Product Parameters and Specifications

The performance of a Ring Joint Gasket is dictated by a precise set of parameters. Understanding these specifications is crucial for ensuring compatibility, safety, and optimal performance. The following parameters define every RJG we produce at Kaxite Sealing.

• Gasket Types: Primarily defined by their cross-sectional shape.
  • R Oval (RX): The standard oval ring gasket, designed for use with flanges having oval grooves. It provides excellent sealing for a wide range of applications.
  • R Octagonal (BX): An octagonal ring gasket used with flanges having octagonal grooves. This design offers a higher degree of sealing efficiency and is often specified for more critical, higher-pressure services.
• Size and Pressure Class: RJGs are designed for specific flange sizes and pressure ratings (e.g., 150lb, 300lb, 600lb, 900lb, 1500lb, 2500lb). The ring number (e.g., R24, BX154) corresponds to the flange size and class.
• Materials of Construction: The choice of material is critical for corrosion resistance and temperature capability. Common materials include:
  • Soft Iron
  • Low Carbon Steel
  • Stainless Steel (304, 304L, 316, 316L)
  • Alloy Steels (AISI 4130, F5, F9, F11, F22)
  • Nickel Alloys (Inconel 600, 625, 718; Monel 400)
• Surface Finish: The sealing surfaces of the ring are finely machined to a smooth finish (typically 63 microinches Ra or better) to ensure intimate contact with the flange groove and prevent leak paths.
• Hardness: The ring material must be softer than the flange material to allow for proper deformation and sealing without damaging the flange groove. Hardness is strictly controlled per relevant standards (ASME B16.20, API 6A).

Detailed Material Selection and Dimensional Data

Selecting the right material-grade combination is paramount. The table below outlines common Kaxite Sealing RJG materials and their typical service limits, providing a guide for engineers and specifiers.

Furthermore, dimensional accuracy is non-negotiable. Rings must conform precisely to standards such as ASME B16.20 (for piping flanges) or API 6A (for wellhead and christmas tree equipment). Critical dimensions include the ring's inside/outside diameter, width, and height, all of which must match the machined groove in the flange to within thousandths of an inch.

Kaxite Sealing Ring Joint Gaskets: Our Commitment to Excellence

At Kaxite Sealing, our manufacturing process is built on a foundation of precision and quality control. Every RJG undergoes rigorous inspection, including dimensional verification, material certification (with full traceability), hardness testing, and visual examination for surface defects. We understand that a gasket is a small component with an enormous responsibility. Our commitment is to deliver products that provide absolute reliability, helping to prevent costly downtime, environmental incidents, and safety hazards. Whether you require standard sizes from stock or custom-engineered solutions for unique applications, our technical team provides expert support from selection through installation.

Ring Joint Gaskets: Frequently Asked Questions (FAQ)

Q: What is the main difference between an Oval (R/RX) and an Octagonal (BX) Ring Joint Gasket?
A: The primary difference lies in the cross-sectional shape and the corresponding flange groove. Octagonal rings have flat sealing surfaces that engage with the angled sides of an octagonal groove, providing a larger contact area and a more efficient, leak-proof seal. This makes BX gaskets generally preferred for higher-pressure, more critical applications. Oval rings have a rounded cross-section and seal along two distinct lines of contact. While extremely effective, they are typically used in slightly less severe services. Crucially, oval and octagonal rings and grooves are NOT interchangeable.

Q: Can a Ring Joint Gasket be reused after it has been compressed and sealed?
A: No, Ring Joint Gaskets are designed for single use only. During installation, the metal ring undergoes controlled plastic deformation as it is crushed into the flange groove. This deformation creates the seal. Once removed, the ring's geometry is permanently altered, and it will not have the correct dimensions or sealing characteristics to create a reliable seal upon re-installation. Reusing an RJG significantly increases the risk of a dangerous leak.

Q: How do I select the correct material for my Ring Joint Gasket application?
A: Material selection is based on three key factors: the internal process fluid (for corrosion resistance), the operating temperature, and the flange material. The gasket material must be compatible with the fluid to prevent degradation. It must retain sufficient strength and oxidation resistance at the operating temperature. Finally, as a rule, the gasket material should be softer than the flange material to seal effectively without galling or damaging the flange faces. Consulting the system's piping specification, material selection diagrams, or a Kaxite Sealing technical expert is essential for this decision.

Q: What are the proper installation and tightening procedures for an RJG?
A: Correct installation is critical. First, ensure the flange grooves and the gasket are clean, dry, and free of scratches or debris. Lightly lubricate the ring and the groove with a suitable antiseize compound (compatible with the service) to prevent galling. Carefully place the ring into the groove—never drop it. Align the bolt holes and install all bolts hand-tight. Then, follow a cross-pattern tightening sequence (torquing in multiple progressive steps, e.g., 30%, 60%, 100% of final torque) to ensure even compression of the ring and prevent flange distortion. Always refer to the equipment manufacturer's or engineering contractor's specific bolt-torquing procedure.

Q: Are Kaxite Sealing Ring Joint Gaskets compliant with international standards?
A> Yes, absolutely. Kaxite Sealing manufactures RJGs in full compliance with all major international standards, including ASME B16.20 (for pipe flanges), API 6A (for wellhead equipment), ISO 10423, and NACE MR0175/MR0103 for sour service (H2S-containing) environments. Each gasket is supplied with a material test certificate (MTC) providing full traceability of the raw material heat number, chemical analysis, and physical test results, ensuring compliance with your project specifications and quality assurance requirements.

Q: What are the signs of a failing or improperly installed Ring Joint Gasket?
A: The most obvious sign is a visible leak, which can range from a slight weeping to a major release. Other indicators can be more subtle. During maintenance, inspect the used ring. Heavy, uneven deformation, deep scoring or galling on the sealing surfaces, or signs of corrosion/erosion are all red flags. A ring that appears "sprung" or has lost its original shape after removal suggests over-torquing or misalignment. Any of these conditions warrant a thorough inspection of the flange grooves for damage and a review of the installation procedure before installing a new Kaxite Sealing gasket.
