Flange Insulation Gasket Kit – Complete Isolation Solution for ASME B16.5 Pipelines (Class 150–2500)

In complex piping systems involving dissimilar metals or cathodic protection, uncontrolled electrical current is a primary driver of galvanic corrosion and premature asset failure. The Flange Insulation Gasket Kit (also known as a Flange Isolation Kit or Insulating Flange Gasket) is engineered as a complete, ready-to-install system that interrupts galvanic corrosion cells, blocks stray currents, and preserves cathodic protection system integrity. Kaxite Sealing offers high-performance flange isolation gasket kits for oil & gas, chemical processing, water treatment, and offshore applications – with full ASME B16.5 compliance, G10/G11 phenolic options, and Class 150 to Class 2500 pressure ratings.

Why risk expensive pipe replacement and unplanned downtime when a complete flange isolation kit can prevent galvanic corrosion at the source?

Core Components of a Flange Insulation Gasket Kit – Type D, E & F Configurations

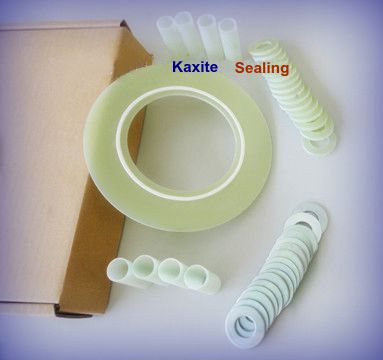

A Flange Insulation Gasket Kit is more than just a gasket – it is a complete isolation package. Kaxite Sealing kits are meticulously engineered to provide a full 360° dielectric barrier between flanged connections. Each flange isolation kit includes the following precision components:

• Central Insulating Gasket: The primary sealing and insulating element, manufactured from non-conductive, compressible materials such as G10/G11 epoxy glass, phenolic resin, or PTFE.
• Insulating Sleeves (Bushings): Fit snugly around each bolt to prevent metal-to-metal contact between the fastener and the flange bolt holes.
• Insulating Washers: Placed under both the bolt head and the nut – completing the electrical isolation of the fastening system.
• Steel Washers: Included to distribute load from the nut and prevent damage to the insulating washers during torquing.
• High-Strength Bolts & Nuts: Precisely sized fasteners matching the kit's pressure rating and flange dimensions – ASTM A193 B7 / A194 2H standard, with optional alloys available.

By integrating all these components, Kaxite ensures a reliable, uniform, and fail-safe insulating joint that withstands operational pressures, temperatures, and environmental challenges – backed by full ASME B16.5 compliance and material traceability.

Flange Insulation Gasket Kit Specifications – G10/G11, Phenolic & PTFE Materials

Selecting the correct flange insulation gasket kit requires careful consideration of service conditions. Kaxite Sealing offers a range of materials and configurations to meet diverse application demands, from high-pressure oil & gas pipelines to corrosive chemical processing environments.

Primary Insulating Gasket Materials

Standard Kit Specifications – Kaxite Sealing Series

• Flange Standards: ANSI B16.5, ASME B16.47, API 6A, DIN, EN, JIS, AWWA C207
• Pressure Class Ratings: Class 150, 300, 600, 900, 1500, 2500 (up to 15,000 PSI on request)
• Size Range: 1/2″ to 24″ NPS standard; custom up to 48″ (DN1200)

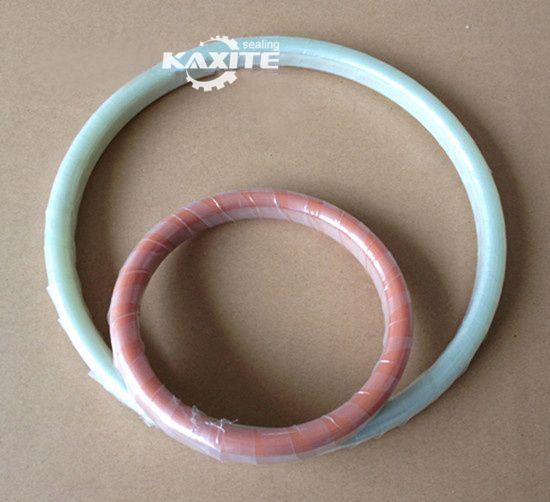

• Kit Types Available: Type D (RTJ ring groove), Type E (full‑face FF), Type F (raised‑face RF)
• Insulating Sleeve & Washer Materials: Phenolic resin, G10/G11 epoxy glass, Mylar, polyethylene
• Metal Washers: Electroplated steel (stainless steel 304/316 optional)
• Bolt/Nut Material: ASTM A193 B7 / ASTM A194 2H (other alloys available)
• Dielectric Test Voltage: Standard kits rated for 1000 VAC minimum isolation
• Certifications: ISO 9001:2015, CE Marking; API 6FB optional; NACE MR0175/ISO 15156 for sour service available

Flange Isolation Kit Applications – Oil & Gas, Chemical, Offshore, Water Treatment

The strategic use of Flange Insulation Gasket Kits is paramount across industries where electrical isolation is non-negotiable. Kaxite Sealing supplies high-quality flange isolation kits to:

• Oil & Gas Production and Pipelines: Isolating pipeline sections for effective Cathodic Protection (CP), preventing stray current interference, and protecting wellhead connections, compressor stations, and tank farms.
• Chemical & Petrochemical Plants: Preventing galvanic corrosion between dissimilar metal flanges (carbon steel to stainless steel) in aggressive chemical environments.
• Offshore & Marine Platforms: Protecting subsea and topside piping from accelerated seawater corrosion caused by galvanic couples and CP systems.
• Power Generation: Isolating piping in grounding grids and systems where induced alternating currents (AC) pose a risk.
• Water & Wastewater Treatment: Extending asset life in aeration systems, clarifiers, and piping networks where sacrificial anodes are used.
• LNG & Hydrogen Transport: Cryogenic service down to -50°C with materials engineered for low-temperature performance.

Frequently Asked Questions (FAQ) About Flange Insulation Gasket Kits

Q1: What is the primary purpose of a Flange Insulation Gasket Kit?
A: The primary purpose is to create a complete electrical isolation barrier within a flanged joint. This flange isolation kit stops the flow of electrical current (both DC for galvanic corrosion and AC stray currents) between connected pipeline sections, preventing galvanic corrosion, enabling proper cathodic protection system function, and enhancing personnel safety.

Q2: What is the MOQ for flange insulation gasket kits?
A: Standard sizes: 5–10 sets. Custom sizes, large diameters, or special materials – MOQ is negotiable. Contact us with your requirements for a tailored quotation.

Q3: Can I get a sample before bulk ordering?
A: Yes. Sample kits (2″–8″) ship within 5 working days. Sample costs may be credited toward your first production order.

Q4: What certifications do your flange insulation kits carry?
A: Standard: ISO 9001:2015, ASME B16.5/B16.20/B16.21, ASTM F436, CE Marking. Optional: API 6FB fire‑safe, ISO 14001, ISO 45001, NACE MR0175.

Q5: What is your standard lead time?
A: Standard sizes: 7–15 working days. Custom/bulk: 15–25 days. Samples: 5 working days. Expedited shipping available on request.

Q6: How do I select the right material for my application?
A: Material selection depends on temperature, pressure, and chemical compatibility. For high-temperature steam – mica or G7 silicone. For broad chemical resistance – PTFE. For high-pressure oil and gas – G10/G11 epoxy glass. Kaxite Sealing technical support can assist with selection.

Q7: Can I reuse an insulation gasket kit after disassembly?
A: Not recommended. The insulating gasket and components are designed to compress during initial torquing. Upon disassembly, this compression set is permanent. Kaxite Sealing advises always installing a new, complete kit during maintenance.

Q8: How do I choose between Type D, E, or F?
A: Type E for flat face/full face flanges. Type F for raised face flanges. Type D for ring‑type joint (RTJ) flanges. Send us your flange specification and we will recommend the correct kit.

Q9: How do I test if an installed insulating flange kit is working?
A: Using a megohmmeter, measure resistance across the isolated flange. A properly installed kit should show >1 megohm. For CP systems, pipe‑to‑soil potential measurements on either side of the joint will confirm isolation.

Q10: Do you offer OEM/private labeling?
A: Yes. Custom packaging and labeling with your brand. Minimum quantities apply – discuss your requirements with our team.

Q11: Why choose a full kit from Kaxite Sealing over sourcing individual components?
A: Kaxite Sealing kits provide guaranteed compatibility and performance – each component is precision-engineered to work together. Sourcing parts separately risks dimensional mismatches and inadequate dielectric performance. Our kits ensure reliability, simplify procurement, and save installation time.

Why Choose Kaxite Sealing Flange Insulation Solutions

Kaxite Sealing distinguishes itself through a commitment to precision engineering and material science. Our Flange Insulation Gasket Kits are critical safety components – not commodity items. We utilize advanced polymers and composites, subject every kit to rigorous dielectric and hydrostatic pressure testing, and provide full documentation for quality assurance. Our technical support team assists with selection for complex applications, ensuring your isolation strategy is robust and effective for the long term – protecting multi-million dollar assets from the hidden threat of galvanic corrosion.
