PTFE Sheet: The Ultimate Guide to High-Performance Sealing and Insulation

For over two decades, industry professionals have relied on PTFE Sheet as a cornerstone material for solving complex engineering challenges. Known chemically as Polytetrafluoroethylene, PTFE is a synthetic fluoropolymer celebrated for its exceptional chemical resistance, wide operating temperature range, low friction coefficient, and excellent dielectric properties. As a leading innovator in advanced polymer solutions, Kaxite Sealing has dedicated years to refining the production and application of high-grade PTFE sheets, ensuring they meet the rigorous demands of modern industries. This guide provides a comprehensive, detailed look at PTFE sheet material, its specifications, and its myriad applications.

Understanding PTFE Material Properties

The unparalleled performance of PTFE stems from its unique molecular structure. The strong carbon-fluorine bonds create a material that is inherently inert, thermally stable, and possesses a surface energy so low that almost nothing sticks to it. This combination of traits makes PTFE sheets indispensable in environments where other materials would fail.

• Extreme Temperature Resistance: PTFE sheets maintain integrity and functionality from cryogenic temperatures as low as -328°F (-200°C) up to a continuous 500°F (260°C), with short-term peaks even higher.
• Universal Chemical Inertness: It is resistant to virtually all industrial chemicals, solvents, and acids, including aggressive substances like aqua regia and molten alkali metals.
• Superior Electrical Insulation: Possesses a very high dielectric strength and volume resistivity, making it an ideal insulator in demanding electrical and electronic applications.
• Low Coefficient of Friction: Has the lowest coefficient of friction of any known solid material, providing self-lubricating, non-stick, and anti-galling properties.
• Excellent Weatherability & UV Resistance: Unaffected by long-term exposure to sunlight, ozone, and extreme weather conditions.
• Non-Flammable: PTFE is rated UL 94 V-0 and will not support combustion.
• FDA Compliance: Certain grades are compliant with FDA regulations for use in food and pharmaceutical processing.

Detailed Product Parameters of Kaxite Sealing PTFE Sheets

Kaxite Sealing offers a comprehensive range of PTFE sheets, available in various forms (virgin, glass-filled, carbon-filled, bronze-filled, etc.) to suit specific application needs. Below are the detailed technical specifications for our standard virgin PTFE sheet offering.

Standard Size & Thickness Availability

Kaxite Sealing PTFE sheets are manufactured to precise tolerances and are available in a wide array of sizes and thicknesses to facilitate easy fabrication and integration into your projects.

• Standard Sheet Sizes: 48" x 48", 48" x 96", 60" x 60", 60" x 120". Custom sizes available upon request.

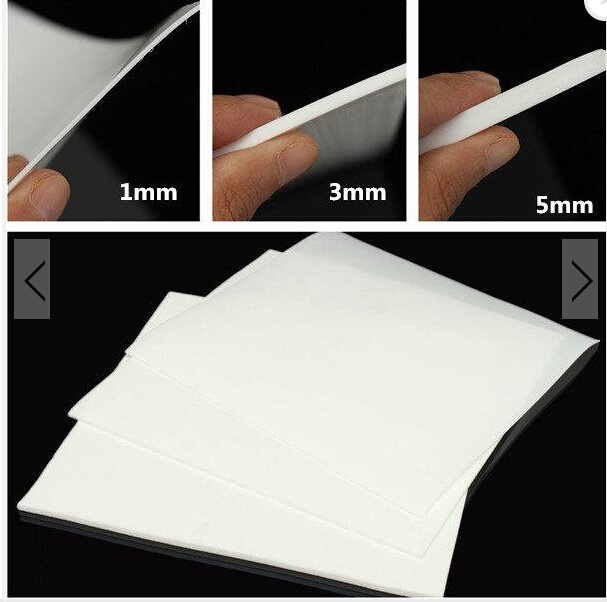

• Standard Thickness Range: 1/64" (0.4mm), 1/32" (0.8mm), 1/16" (1.6mm), 1/8" (3.2mm), 1/4" (6.4mm), 1/2" (12.7mm), up to 2" (50.8mm) and beyond.

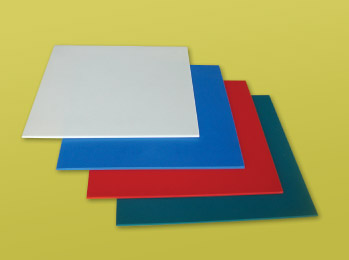

• Color: Standard is white (virgin). Other colors like beige (for FDA grades) or customized colors for filled compounds are available.

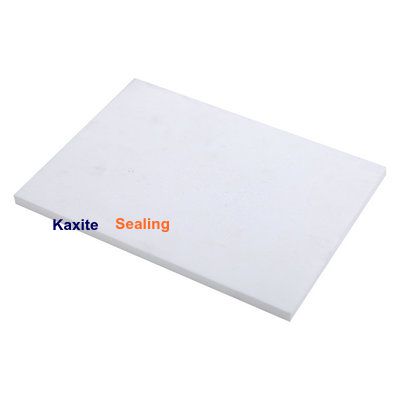

• Surface Finish: Standard is skived (peeled) finish, providing a smooth, consistent surface. Molded sheets are also available for specific applications.

Primary Industrial Applications

The versatility of Kaxite Sealing PTFE sheets makes them a critical component across numerous sectors.

• Chemical Processing: Gaskets, seals, liners, bellows, and spacer rings in pumps, valves, reactors, and pipe flanges handling corrosive fluids.
• Semiconductor & Electronics: Insulating spacers, wafer carriers, etch tank liners, and components for plasma etching equipment due to high purity and electrical properties.
• Food & Pharmaceutical: FDA-compliant sheets used for conveyor belts, wear plates, guides, and seals in processing equipment, ensuring non-contamination.
• Aerospace & Automotive: Seals, bushings, thrust washers, and insulating components in fuel systems, engines, and hydraulic systems exposed to extreme temperatures and fuels.
• Industrial Machinery: Low-friction wear pads, slide plates, bearing pads, and backup rings for hydraulic/pneumatic cylinders.
• Architectural & Construction: Expansion joint pads and bridge bearing pads due to its ability to accommodate movement under heavy loads with minimal friction.

Frequently Asked Questions (FAQ) About PTFE Sheet

Q: What is the main difference between virgin PTFE and filled PTFE sheets?
A: Virgin PTFE is the pure, unfilled polymer boasting the highest chemical resistance and lowest friction. Filled PTFE sheets incorporate materials like glass fiber, carbon, graphite, bronze, or molybdenum disulfide. These fillers enhance specific properties: glass improves stiffness and creep resistance; carbon/graphite enhance wear resistance and conductivity; bronze improves thermal conductivity and load-bearing capacity. Kaxite Sealing offers a full portfolio to match the exact requirement.

Q: How do I cut and fabricate a PTFE sheet?
A: PTFE sheets can be machined using standard workshop tools, though it requires specific techniques. For cutting, use sharp, high-speed steel or carbide-tipped tools. Band saws, die cutters, water jets, and laser cutters are effective. For drilling and milling, use positive rake angles and adequate coolant to prevent material "gumming." Due to its flexibility, thin sheets can be sheared. Always secure the material firmly to prevent vibration and ensure clean cuts.

Q: Can PTFE sheets be used for high-pressure gasketing applications?
A: While PTFE has excellent chemical compatibility, pure virgin PTFE is prone to "cold flow" or creep under sustained high pressure and temperature. For high-pressure flange gaskets, filled PTFE grades (especially glass-filled) or multi-layer designs like Kammprofile gaskets with a PTFE sealing layer are recommended. These designs limit the creep and maintain a reliable seal. Always consult pressure-temperature ratings and application guides, such as those provided by Kaxite Sealing engineers.

Q: Is PTFE sheet safe for use in food contact applications?
A: Yes, but only specific grades are approved. Kaxite Sealing supplies FDA-compliant PTFE sheets that conform to FDA CFR 21.177.1550 for articles intended for repeated use in contact with food. These grades are manufactured with strict controls to ensure no unauthorized additives are present. They are commonly used in food processing lines, packaging machinery, and brewing equipment.

Q: How does temperature affect the mechanical properties of a PTFE sheet?
A: PTFE retains its remarkable flexibility and toughness at extremely low temperatures without becoming brittle. At elevated temperatures, its tensile strength decreases gradually but it remains functional well beyond most thermoplastics. However, long-term exposure above 500°F (260°C) can lead to gradual thermal degradation. For the most demanding high-temperature applications, consulting the specific long-term thermal aging data from Kaxite Sealing is advised to ensure material suitability.

Q: What are the limitations of PTFE sheets?
A: Understanding limitations is key to proper application. PTFE has relatively low mechanical strength and stiffness compared to metals and some engineered plastics, making it unsuitable for high-stress structural parts without support. Its high thermal expansion rate requires design accommodation for temperature cycles. It can be permeated by certain gases and is not recommended for strong reducing agents like alkali metals. Furthermore, it cannot be melted and processed like conventional thermoplastics for welding.

Q: How should PTFE sheets be stored and handled?
A> Store PTFE sheets in a cool, dry, and dark environment away from direct sunlight and heat sources. Keep them flat on a smooth surface or vertically supported to prevent warping or bending. Although chemically inert, keep them clean from dust and grease for critical applications. Use appropriate personal protective equipment when machining to avoid inhalation of fine particles. No special climate control is typically needed.

Q: Why choose Kaxite Sealing as your PTFE sheet supplier?
A: Kaxite Sealing distinguishes itself through a commitment to quality, consistency, and technical expertise. Our PTFE sheets are produced using rigorously controlled processes to ensure batch-to-batch uniformity in dimensions and properties. We offer not just materials, but solutions—providing extensive technical support, custom fabrication capabilities, and guidance on material selection for optimal performance and cost-efficiency. Our global logistics network ensures reliable delivery to keep your operations running smoothly.
