Polyimide Article

Discover the Polyimide Article by Kaxite Sealing, a high-performance product designed for demanding industrial applications. Offering exceptional heat resistance and durability, it ensures reliable sealing in harsh environments. Ideal for engineers and manufacturers, this solution enhances efficiency and reduces downtime, making it a standout choice with its superior material quality and innovative design. Experience the peace of mind that comes with trusted performance from Kaxite Sealing.

Send Inquiry

Product Description

[ Features ]

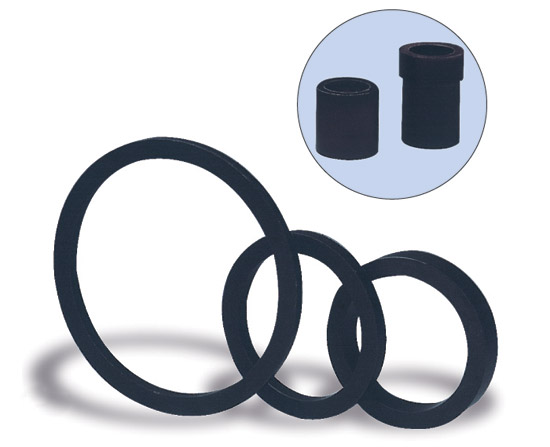

Polyimide article is a solid mass with the colour of translucent or opaque amber, or deep brown. It has good mechanical intensity and possesses the superior properties against high temperature(working temperature 250)and radiation. Polyimide article can be made into thin film,srengthened plastic moulding article, high-vacuum selflubricating bearing of resistance to high temperature, parts of electric apparatus used in high temperature, articles of resistance to radiation and so on.It can also be used as dielectric materials,such as plug,socket, skeleton and wire rack of different electrical applicance,etc.Polyimide added in with a moderate amount of polytetrafluoroethylene(PTFE)and graphite can be used as oilless lubricating material used in high-speed compressor,such as piston ring sealing ring,axle rim,etc.

Polyimide Article

[ Specifications ]

(outside diameter )X(Inside diameter )XHigh(M/M)

30X19X70　36X24X50	57X45X50	66X55X50	100X83X50　120X97X50
50X38X50	66X45X50	70X45X50　72X60X50	180X140X50
57X40X50	66X51X50	84X70X70　81X72X40

[ Features ]

Proportion	1.36-1.37
heat setting temperature	(18.5kg/cm²) 232
bending strength (bending point)	1660kg/cm²
crush strength	>155kg•cm/cm²
friction factor(noumenon)	0.24
hardness(HB)	23
PV value	20-30m•kg/mm²•S
