Gaskets: The Critical Sealing Components for Industrial Integrity

In the intricate world of industrial machinery and fluid systems, the reliability of the entire operation often hinges on the smallest, most unassuming components. Among these, Gaskets stand as fundamental guardians against leaks, pressure loss, and contamination. At Kaxite Sealing, with decades of engineering expertise, we understand that a gasket is not merely a piece of material—it is a precision-engineered sealing solution designed to meet exacting standards. This guide delves deep into the world of gaskets, exploring their types, materials, key parameters, and the critical role they play across industries. We will also address common questions to help you specify the perfect seal for your application.

Understanding Gaskets: Function and Core Principles

A gasket is a mechanical seal that fills the space between two or more mating surfaces, generally to prevent leakage from or into the joined objects while under compression. They are used to seal static flange connections in pipelines, engines, compressors, and a vast array of industrial equipment. The primary functions are:

• Sealing: To create a leak-tight barrier against fluids (liquids and gases) and sometimes fine particulates.
• Compensating for minor imperfections, irregularities, or warping on flange surfaces.
• Distributing clamping force evenly across the flange faces.
• Providing resistance to the operating environment, including temperature, pressure, and chemical media.

The effectiveness of a gasket depends on its ability to flow into and fill the surface micro-irregularities when compressed, creating a sealing zone. This is governed by its material properties and design.

Kaxite Sealing's Gasket Product Range and Material Specifications

Kaxite Sealing offers a comprehensive portfolio of gasket materials and pre-cut forms tailored for specific service conditions. Choosing the correct material is the first and most crucial step in ensuring sealing integrity.

Critical Gasket Parameters: A Detailed Specification List

When selecting a gasket, engineers must evaluate a set of key performance parameters. Kaxite Sealing provides certified data for all our materials to ensure precise selection.

• Thickness: Standard thicknesses range from 0.5mm (0.020") to 3.0mm (1/8"). Thinner gaskets offer higher stress but less conformability; thicker gaskets are more compressible for uneven surfaces.
• Density/Specific Gravity: Measured in g/cm³. Affects compressibility, recovery, and sealing force. Higher density often correlates with better blow-out resistance.
• Compressibility: The percentage reduction in thickness under a defined load (e.g., ASTM F36). Indicates how well the gasket will conform to flange faces.
• Recovery: The percentage of thickness regained after the compressive load is released (ASTM F36). High recovery is vital for maintaining seal under thermal cycling or pressure fluctuations.
• Tensile Strength: The maximum tensile stress a material can withstand (ASTM F152). Important for handling and installation integrity.
• Creep Relaxation: The loss of clamping force over time under constant temperature and compression (ASTM F38). Low creep relaxation is critical for long-term seal maintenance.
• Maximum Recommended Seating Stress: The flange pressure (in MPa or psi) required to properly seat the gasket and initiate an effective seal.
• Temperature & Pressure Ratings: The continuous and peak operating limits for the material. Always consult Kaxite Sealing's detailed charts for specific media compatibility.
• Fluid/Chemical Compatibility: Determined by the material's resistance to swelling, degradation, or chemical attack from the sealed medium.

Gasket Selection Guide: Matching the Seal to the Application

Use the following structured approach to select the optimal Kaxite Sealing gasket:

1. Identify the Media: What fluid or gas is being sealed? Determine its chemical properties, pH, and if it contains particulates.
2. Define Operating Conditions: Establish the continuous and cyclic temperature and internal pressure.
3. Analyze Flange Conditions: Consider the flange material, surface finish (Ra value), flatness, bolting pattern, and available bolt load.
4. Consider Regulatory & Safety Requirements: Does the application require certifications like FDA, USP Class VI, NSF, or ATEX?
5. Cross-Reference with Material Properties: Match the conditions from steps 1-4 against the parameter tables of candidate materials.
6. Choose Form Factor: Select from sheet stock for cutting onsite, or pre-cut shapes (rings, full-face, oval) for precision and reduced installation time.

Gasket FAQs: Expert Answers from Kaxite Sealing

Q: What is the primary cause of gasket failure?

A: The most common cause is improper selection for the application—using a material incompatible with the temperature, pressure, or chemical media. Other leading causes include inadequate or uneven bolt torque during installation (leading to insufficient seating stress or over-compression), damaged or improperly prepared flange surfaces, and selecting a gasket with poor creep relaxation, which causes the seal to lose clamping force over time.

Q: How do I determine the correct bolt torque for my gasket installation?

A: Correct bolt torque is critical and is not a universal value. It depends on the gasket material's recommended seating stress, the flange size/type (e.g., raised face, flat face), the bolt grade/size, and the use of lubrication on threads. Kaxite Sealing provides specific seating stress values (in MPa or psi) for our materials. Engineers should use the formula T = (K * D * F) / 12 (for imperial) to calculate torque, where T is torque (ft-lbs), K is the nut factor (typically 0.2 for lubricated), D is bolt diameter (inches), and F is the target bolt load (lbs). Always follow a cross-pattern tightening sequence to ensure even compression.

Q: Can I reuse a gasket after it has been compressed?

A: As a general rule, gaskets should never be reused. Once compressed, most materials undergo permanent deformation (plastic flow) and have significantly reduced recovery properties. Their sealing ability is compromised, and reinstallation almost guarantees a leak path. Metal gaskets, like some ring-type joints, are an exception but require meticulous inspection for cracks or deformation. Kaxite Sealing always recommends using a new gasket for any flange reassembly to ensure system integrity and safety.

Q: What is the difference between a full-face and an inner-bolt-circle (IBC) gasket?

A: A full-face gasket covers the entire flange face, including the bolt holes. It is typically used with flat-face flanges and helps distribute load and protect the flange. An inner-bolt-circle (IBC) or raised-face gasket sits inside the bolt circle and matches the raised sealing surface of an RF flange. The choice depends entirely on the flange type specified in the piping design. Using the wrong style can lead to improper load distribution and seal failure.

Q: When should I choose a spiral wound gasket over a solid soft cut gasket?

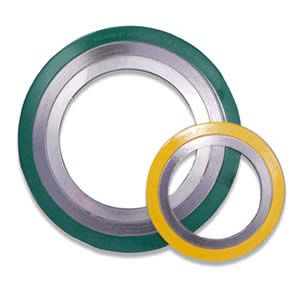

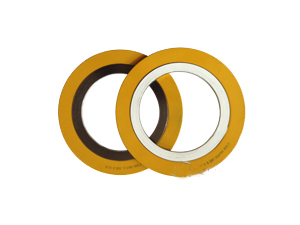

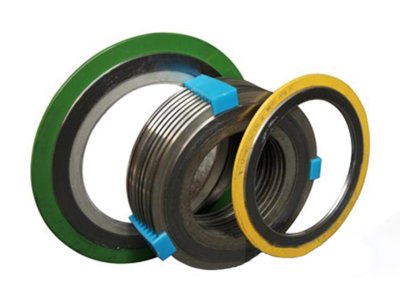

A: Choose a spiral wound gasket (a semi-metallic type) for high-pressure (Class 300 and above) and high-temperature applications, especially where thermal cycling is present. Its metallic structure provides excellent resilience and recovery. A solid soft cut gasket (from CNA, graphite, or PTFE sheet) is ideal for lower to medium pressure/temperature services, for irregular flange surfaces due to its higher conformability, and for applications requiring strong chemical resistance from non-metallic materials. The engineers at Kaxite Sealing can perform a detailed application review to recommend the most reliable and cost-effective type.

Q: How important is flange surface preparation before installing a new gasket?

A: It is paramount. The flange surfaces must be clean, dry, and free of all old gasket material, rust, burrs, and scratches. A light pass with an appropriate abrasive pad or brush is often sufficient. Deep pitting or scratches beyond the specified Ra (Roughness Average) surface finish will prevent a proper seal, as the gasket cannot flow into these macro-defects. For optimal performance, ensure the flange finish matches the gasket manufacturer's recommendation—typically 125-250 microinches Ra for soft cut gaskets and a smoother 32-125 microinches Ra for spiral wound and metal jacketed gaskets.
